So ran into a bit of a pickle with the coding and my DSC module is not being recognized with my programs via OBDII.

I originally removed $203 from my FA in LMA and CAS but I never coded the whole car after those modules, I thought once those two were changed all other modules would automatically be coded. My research leads me to believe that when there is some conflicting Vehicle Orders (VOs) issue like this will arise.

I noticed this issue after installing my 535i DSC unit and trying to code it with NCS Expert but the module was nowhere to be found, I connected my old DXC module and still nothing appeared. Interestingly, I can not get into the DSC unit with NCSE or INPA but I was able to pull some DSC codes one (out of many) of the times I pulled codes from all modules with INPA. My software works just fine with all other modules.

To compound the issue my battery is low my charger isn't able to get the voltage where it needs to be for coding. I am getting a bunch of "COAPI-2021: Datatransmission to ECU disturbed" errors, every few seconds, it will interrupt INPA functions sporadically but when I try to "code car" with my modified VO, the errors pops up after ~10-15 seconds when I am on my 3rd or 4th module. I guess I could code them 1 at a time but I have some 45 modules to get through.

I think once I all the modules are coded with the same VO DSC might be recognizable once again? When going back to my post 14: N54Tech.com - Your Source for International Turbo BMW Racing Discussion - View Single Post - My 535xi Touring is now a 535i Touring: AWD to RWD Conversion
...you can see that my DSC wasn't listed then either, I totally overlooked it. I have pulled the VO from another 535i E60 (Thanks Ocean) to see if there was a DSC specific VO added to RWD cars as maybe mine was somehow included with the $203 (AWD) I removed.

To make things more challenging a low battery can trigger a bunch of ghost codes so I have to pay close attention to which codes are real. I am hoping that once my replacement axle arrives I will be able to get the operational and run it on the freeway to really charge the battery so I complete some uninterrupted coding.

Here is the recent batch of applicable codes:

DME
CDBE Nominal Torque Request
CDAD Request Wheel Torque, Drivetrain, BF

EGS
CF34 Message from DSC
511B Faulty Coding

VGSG
55C3 AWD Malfunction Regulation Activated
CF54 VTG MEssage, Nominal Torque, BB
54C8 VTG Classification Resistor Issue

DSC
5EC2 Steering Angle Sensor Plausibility
6DC3 DSC Sensor Adjustment Required


DXC Module removed


535i DSC pump and module separated


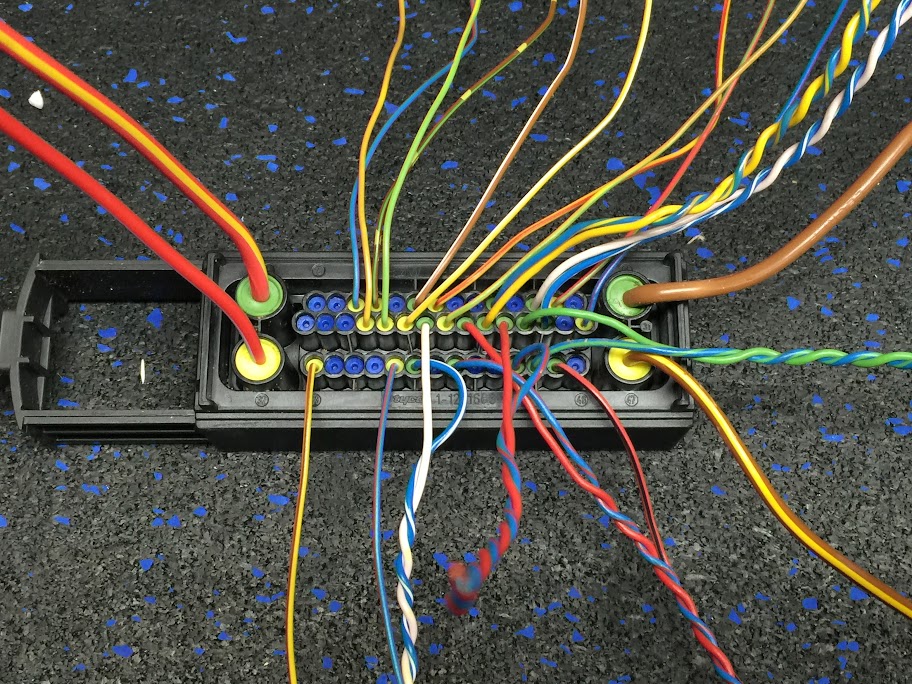

535i Connector



In the meantime I took a break from the computer stuff and finally cleaned up the vent hose routing on my expansion tank. I bought a vent hose for a 550i and modified it.

Before


After


I also pulled my busted axle in anticipation for the replacement.


LOL

2008 N54-Powered E61 M5 Wagon: ~600whp ~600wtq
- AWD-RWD Conversion, OEM M5 Drivetrain Retrofit, Manual Trans Swap, Spec 3+ Clutch, MFactory SMFW
- OEM M5 Brakes, KW V3, RD Sport Sways, UR Strut Braces, Forgestar F14 SDC 19x9.5 19x11, Hankook V12
- Hexon RR550 Hybrid Turbos, Custom Turbo Inlets, AR DP, VRSF 7" IC, ER CP, Tial BOV, RB PCV, BMS OCC,
- BMS JB4, E85 Flash, Fuel-It Stage 2 LPFP, EOS Port Injection Manifold, Custom 3" Exhaust
- OEM M5 Front Bumper, OEM M5 Front Fenders (Vents Deleted), OEM M5 Skirts, OEM M5 Mirrors, M-Tech Rep Rear Bumper
- Quad Projector Headlights, Custom Tail Lights, Rigid SR 6" Reverse Light, Full LED Interior/Exterior Lighting
ucsbwsr is offline

post #124 of 291 Old 9th January 2016, 03:38 AM
jcolley
M5 Expert (>4000)

jcolley's Avatar

Join Date: Apr 2006
Location: Maine
Posts: 5,660
Thanks: 77
Thanked 1,264 Times in 872 Posts
Hi Evan. I got your email and PM, sorry i haven't responded yet, a lot going on.

The KGM is the module that translates from D-CAN to PT-CAN for the DSC. It's possible that the new DSC resides on a different hex address and that address is set in the KGM by programming it with the new VO. Instead of programming the whole car, try just the KGM first. Ecu group KGM60 in WinKFP with UIF write enabled just to be safe.

Otherwise you can use WinKFP and manually choose the hex address of the target module. Im not sure how to do that, but perhaps @CHARIOT can chime in on that.
jcolley is offline
post #125 of 291 Old 10th January 2016, 02:08 AM
CHARIOT
Member, P500, DSC On (>600)

Join Date: Sep 2014
Location: US of A
Posts: 665
Thanks: 11
Thanked 89 Times in 63 Posts
Wow. A prius, and a mad boosted 5 - seems like you've nailed the best of both extremes here OP. :P Prius for 'round town, and the 5 for trips?

You mentioned earlier in the thread that you were not able to communicate with DXC before either?

IS your donor part from an LCI too? Keep in mind it's not advised to mix pre/post LCI DXC units due to the Bordnet conflict of communication standards of Kline and Dcan. (A new DXC module started after 3/07) Can you provide some details on the original and replacement DXC units?

If you can't communicate with DXC diagnostically, you need to verify your power, grounds, and CAN.

Last edited by CHARIOT; 10th January 2016 at 02:28 AM.
CHARIOT is offline
post #126 of 291 Old 10th January 2016, 07:20 PM Thread Starter
ucsbwsr
Member, P400 Sport, DSC On (>550)

ucsbwsr's Avatar

Join Date: Jul 2008
Location: San Diego
Posts: 560
Thanks: 9
Thanked 68 Times in 47 Posts
Garage
Quote:
Originally Posted by jcolley View Post
Hi Evan. I got your email and PM, sorry i haven't responded yet, a lot going on.

The KGM is the module that translates from D-CAN to PT-CAN for the DSC. It's possible that the new DSC resides on a different hex address and that address is set in the KGM by programming it with the new VO. Instead of programming the whole car, try just the KGM first. Ecu group KGM60 in WinKFP with UIF write enabled just to be safe.

Otherwise you can use WinKFP and manually choose the hex address of the target module. Im not sure how to do that, but perhaps @CHARIOT can chime in on that.
Thanks for reaching out, I have acquired most of the parts I need for my M5 conversion, the only thing I am in need of is a lci shift boot and the foam/rubber insulation that sits around the shifter and on top of the trans. If you have that, let me know!

I was told on another forum that the used DSC I purchased, as it was previously used on another car, will need my VIN flashed to it to be recognized by my E61. If the DSC module still has a mismatched vin would coding the KGM get around that issue?

Quote:
Originally Posted by CHARIOT View Post
Wow. A prius, and a mad boosted 5 - seems like you've nailed the best of both extremes here OP. :P Prius for 'round town, and the 5 for trips?

You mentioned earlier in the thread that you were not able to communicate with DXC before either?

IS your donor part from an LCI too? Keep in mind it's not advised to mix pre/post LCI DXC units due to the Bordnet conflict of communication standards of Kline and Dcan. (A new DXC module started after 3/07) Can you provide some details on the original and replacement DXC units?

If you can't communicate with DXC diagnostically, you need to verify your power, grounds, and CAN.
...sort of... The Prius is my girlfriends, I only use it when my car is under the knife, no reason NOT to drive the wagon all the time! #DailyDrivenWhenItWorks

The DSC module I purchased to replace my DXC is also from an LCI, a 2010 528i AT/RWD to be exact.

My initial coding was removing $203 "4-wheel drive" from the VO in both the LMA and CAS modules via NCSE, I never changed the VO in other modules nor did I "code car" after removing $203. I didn't notice that the DXC was MIA until I tried to flash/code my replacement module but I went back and saw a screenshot I had taken a couple days after my initial VO coding and even back then the DXC module wasn't listed, at that point I had done absolutely nothing to the DXC unit other than removing $203 from LMA and CAS. Not sure what the connection is between $203 and DSC missing.

I hope this makes sense.
Evan

Here is a screen shot of my UIF



On a side note, the black interior continues to evolve



2008 N54-Powered E61 M5 Wagon: ~600whp ~600wtq
- AWD-RWD Conversion, OEM M5 Drivetrain Retrofit, Manual Trans Swap, Spec 3+ Clutch, MFactory SMFW
- OEM M5 Brakes, KW V3, RD Sport Sways, UR Strut Braces, Forgestar F14 SDC 19x9.5 19x11, Hankook V12
- Hexon RR550 Hybrid Turbos, Custom Turbo Inlets, AR DP, VRSF 7" IC, ER CP, Tial BOV, RB PCV, BMS OCC,
- BMS JB4, E85 Flash, Fuel-It Stage 2 LPFP, EOS Port Injection Manifold, Custom 3" Exhaust
- OEM M5 Front Bumper, OEM M5 Front Fenders (Vents Deleted), OEM M5 Skirts, OEM M5 Mirrors, M-Tech Rep Rear Bumper
- Quad Projector Headlights, Custom Tail Lights, Rigid SR 6" Reverse Light, Full LED Interior/Exterior Lighting
ucsbwsr is offline
post #127 of 291 Old 11th January 2016, 01:55 AM
CHARIOT
Member, P500, DSC On (>600)

Join Date: Sep 2014
Location: US of A
Posts: 665
Thanks: 11
Thanked 89 Times in 63 Posts
You should still be able to connect to DSC and at least read the AIF/UIF if it is on the bus. DSC/DXC have the same hex address so if you you read it with an FA containing 203 it should give you a warning and say it actually found DSC not DXC. Have you checked the big 3 at your DSC connector? You should have power on pins 1,32,45 (~13v with engine running since they're KL30) Ground on pins 16, and/or 47, and CAN voltage on 23,25,38, 40. Also make sure you're getting wake up voltage on pin 14. (Should be ~12 volts, NOT Vbatt)

Use tool32 to connect if INPA wont let you connect.

Also, all your MOST components are missing from your UIF list above; did you have them disconnected?

I attached your original Virtual build order from BMW for you (Still has $203) - change the extension to .ssd from .txt, then load it into NCS and try to read coding data from "EHB" is the ECU list. Let us know what happens!
Attached Files
File Type: txt CX02317.txt (291 Bytes, 95 views)

Last edited by CHARIOT; 11th January 2016 at 02:47 AM.
CHARIOT is offline
post #128 of 291 Old 15th January 2016, 04:54 PM Thread Starter
ucsbwsr
Member, P400 Sport, DSC On (>550)

ucsbwsr's Avatar

Join Date: Jul 2008
Location: San Diego
Posts: 560
Thanks: 9
Thanked 68 Times in 47 Posts
Garage
Quote:
Originally Posted by CHARIOT View Post
You should still be able to connect to DSC and at least read the AIF/UIF if it is on the bus. DSC/DXC have the same hex address so if you you read it with an FA containing 203 it should give you a warning and say it actually found DSC not DXC. Have you checked the big 3 at your DSC connector? You should have power on pins 1,32,45 (~13v with engine running since they're KL30) Ground on pins 16, and/or 47, and CAN voltage on 23,25,38, 40. Also make sure you're getting wake up voltage on pin 14. (Should be ~12 volts, NOT Vbatt)

Use tool32 to connect if INPA wont let you connect.

Also, all your MOST components are missing from your UIF list above; did you have them disconnected?

I attached your original Virtual build order from BMW for you (Still has $203) - change the extension to .ssd from .txt, then load it into NCS and try to read coding data from "EHB" is the ECU list. Let us know what happens!
Thanks for the continued information, I appreciate it.


I took a break from coding as my battery voltage was dropping below 12v even with support so I ordered a new battery and am picking it up today. I will install, code the battery, and continue poking around with the DSC coding.

In the meantime I replaced my broken rear axle. First I ordered a used axle off ebay that had VERY damaged threads and was unsalvageable, the seller gave me a full refund and I ordered another axle from a local dismantler. Unfortunately the 2nd axle also had thread damage and I was again refunded my money. Since the damaged axles had to core value to the sellers I was instructed to keep both with worked out well as I was able to have a local axle shop recut the threads on the second axle and in the end was able to repair my broken drivetrain for $25!

VGSG module was also removed.

Evan



Whoops!



California Axle Supply in Huntington Beach has a lot of axles


After threads were recut and splines cleaned


Installed, you can see the weeping grease from my old axle.


Same thing on the passenger side.


VGSG module


aaaaaaaaaaaaaand it's GONE!

2008 N54-Powered E61 M5 Wagon: ~600whp ~600wtq
- AWD-RWD Conversion, OEM M5 Drivetrain Retrofit, Manual Trans Swap, Spec 3+ Clutch, MFactory SMFW
- OEM M5 Brakes, KW V3, RD Sport Sways, UR Strut Braces, Forgestar F14 SDC 19x9.5 19x11, Hankook V12
- Hexon RR550 Hybrid Turbos, Custom Turbo Inlets, AR DP, VRSF 7" IC, ER CP, Tial BOV, RB PCV, BMS OCC,
- BMS JB4, E85 Flash, Fuel-It Stage 2 LPFP, EOS Port Injection Manifold, Custom 3" Exhaust
- OEM M5 Front Bumper, OEM M5 Front Fenders (Vents Deleted), OEM M5 Skirts, OEM M5 Mirrors, M-Tech Rep Rear Bumper
- Quad Projector Headlights, Custom Tail Lights, Rigid SR 6" Reverse Light, Full LED Interior/Exterior Lighting
ucsbwsr is offline
post #129 of 291 Old 22nd January 2016, 04:29 PM Thread Starter
ucsbwsr
Member, P400 Sport, DSC On (>550)

ucsbwsr's Avatar

Join Date: Jul 2008
Location: San Diego
Posts: 560
Thanks: 9
Thanked 68 Times in 47 Posts
Garage
Good day for the wagon:

- Module "safety"
- 6AT Mechatronics sleeve and seal
- Trans flush and reflash
- Rear differential flush
- New front tires + Tredwear

Level for the fluid flushes


In my E61 most of the modules are stored at the bottom of the spare tire well and if the roof drains become clogged water can build up in the well and fry the modules, a pricey repair. I decided to implement some cheap insurance and drill a drain hole. 3/16" bit


There it is


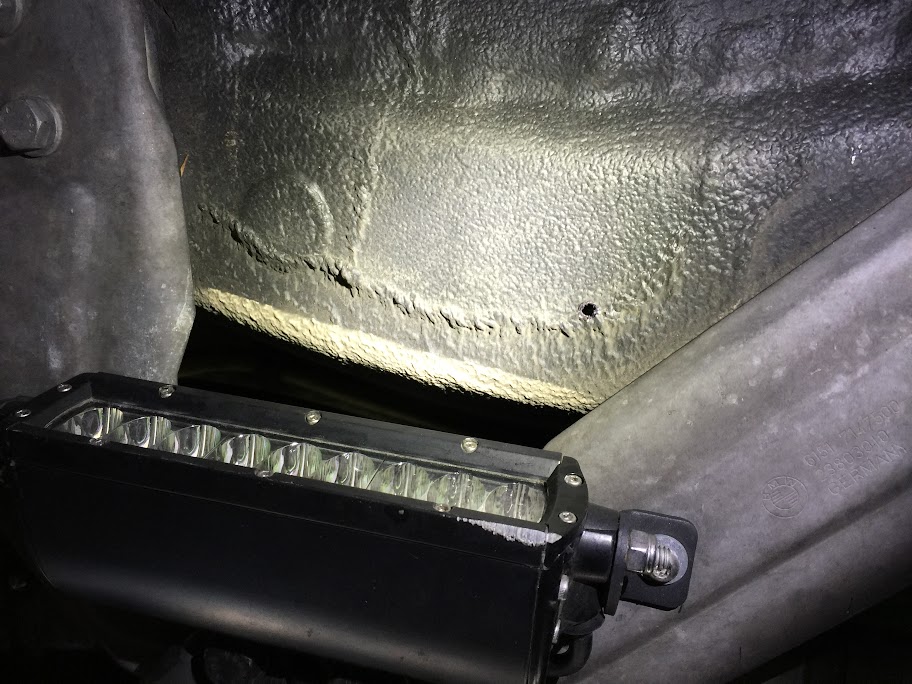

From the outside


Spare tire is out and audio is in, JBL MS8 for the interior speakers (BSW) and MSA500-1 for the subs.


At some point I will get around to fabricating a dummy-floor to cover the wiring.


Going in for trans work


Everything is more difficult on x-drives, although my car operates as RWD, the transfer case is still installed and RIGHT in the way.

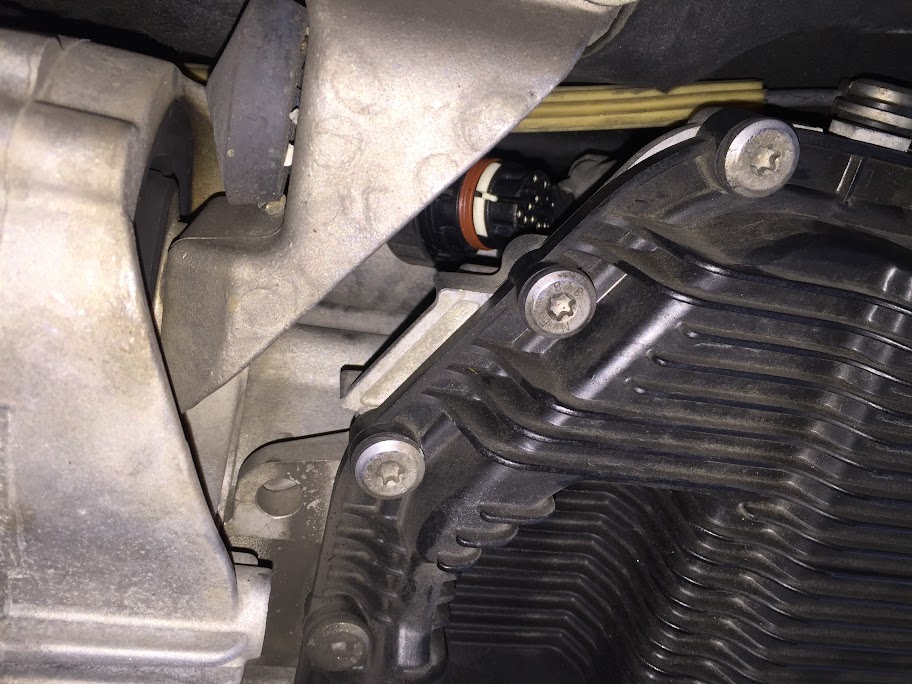

Mechatronics sleeve and connector, I had to pull the transmission mount and tilt the whole unit down to get access.


Bottom of the 6AT after the mechatronics was removed.


Old and New sleeve (old was in good shape)


Old and New mechatronics adapter


Cleaning oil pan/filter


Can you tell which magnet was cleaned?


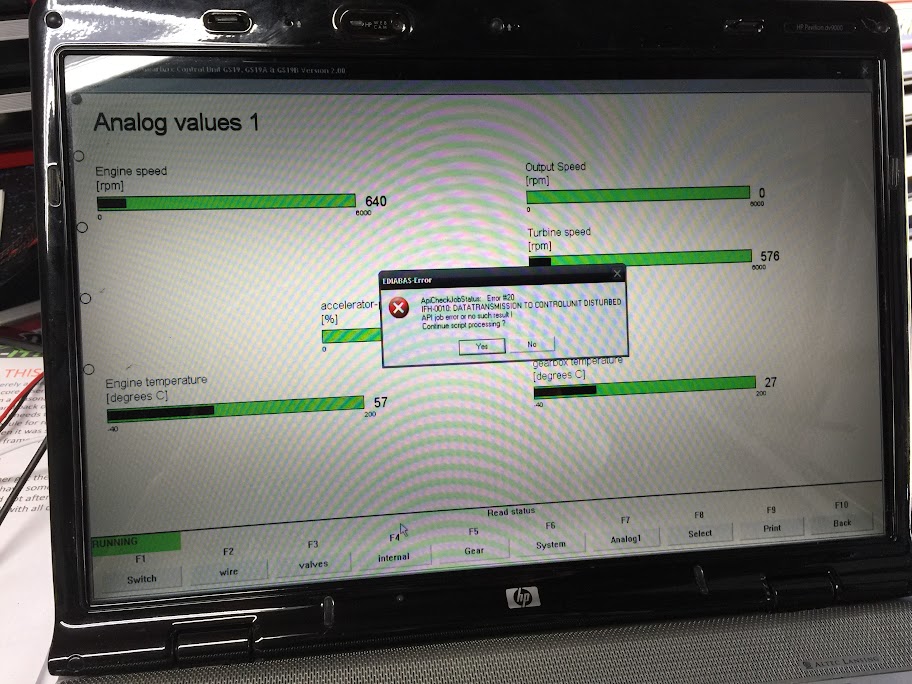

Getting trans fluid to operating temp for level check


Old fluid: ATF, ATF, Rear Diff


New fluids


Old tires (V12 Evo 1)


New Rubbah!


Installing new TredWear decals. I can't stress the importance of proper prep and installation. It takes me ~3 hours to do 2 tires (4 decals). Lots of work but lots of reward IMO.


Proper glue distribution. Not too much, not too little, all the way to the edges


Before


...aaaaaaaand we're back!




2008 N54-Powered E61 M5 Wagon: ~600whp ~600wtq
- AWD-RWD Conversion, OEM M5 Drivetrain Retrofit, Manual Trans Swap, Spec 3+ Clutch, MFactory SMFW
- OEM M5 Brakes, KW V3, RD Sport Sways, UR Strut Braces, Forgestar F14 SDC 19x9.5 19x11, Hankook V12
- Hexon RR550 Hybrid Turbos, Custom Turbo Inlets, AR DP, VRSF 7" IC, ER CP, Tial BOV, RB PCV, BMS OCC,
- BMS JB4, E85 Flash, Fuel-It Stage 2 LPFP, EOS Port Injection Manifold, Custom 3" Exhaust
- OEM M5 Front Bumper, OEM M5 Front Fenders (Vents Deleted), OEM M5 Skirts, OEM M5 Mirrors, M-Tech Rep Rear Bumper
- Quad Projector Headlights, Custom Tail Lights, Rigid SR 6" Reverse Light, Full LED Interior/Exterior Lighting
ucsbwsr is offline
post #130 of 291 Old 26th January 2016, 07:35 PM Thread Starter
ucsbwsr
Member, P400 Sport, DSC On (>550)

ucsbwsr's Avatar

Join Date: Jul 2008
Location: San Diego
Posts: 560
Thanks: 9
Thanked 68 Times in 47 Posts
Garage
More M5 parts:
M5 LSD
M5 Driveshaft + Flex Disc
M5 Axles
MFactory Solid Diff Bushings



Black seatback conversion is complete




2008 N54-Powered E61 M5 Wagon: ~600whp ~600wtq
- AWD-RWD Conversion, OEM M5 Drivetrain Retrofit, Manual Trans Swap, Spec 3+ Clutch, MFactory SMFW
- OEM M5 Brakes, KW V3, RD Sport Sways, UR Strut Braces, Forgestar F14 SDC 19x9.5 19x11, Hankook V12
- Hexon RR550 Hybrid Turbos, Custom Turbo Inlets, AR DP, VRSF 7" IC, ER CP, Tial BOV, RB PCV, BMS OCC,
- BMS JB4, E85 Flash, Fuel-It Stage 2 LPFP, EOS Port Injection Manifold, Custom 3" Exhaust
- OEM M5 Front Bumper, OEM M5 Front Fenders (Vents Deleted), OEM M5 Skirts, OEM M5 Mirrors, M-Tech Rep Rear Bumper
- Quad Projector Headlights, Custom Tail Lights, Rigid SR 6" Reverse Light, Full LED Interior/Exterior Lighting
ucsbwsr is offline
Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the BMW M5 Forum and M6 Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)




Similar Threads
Thread Thread Starter Forum Replies Last Post
E39 Want to buy: a few pretty parts. dj2xrated Parts / Other For Sale or Wanted 2 23rd May 2012 09:30 AM
Soft Close Doors = Won't Close Doors Bibendum E63 BMW M6 Forum and BMW M6 Convertible | m6board.com 7 15th June 2008 07:20 PM
Facelift Headlights & Taillights now available at Tischer BMW from Evan T Bone E63 BMW M6 Forum and BMW M6 Convertible | m6board.com 31 12th February 2008 05:42 PM
Is this pretty? Ashok Arora GTBoard.com: General Sportscars 7 2nd May 2006 10:20 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
